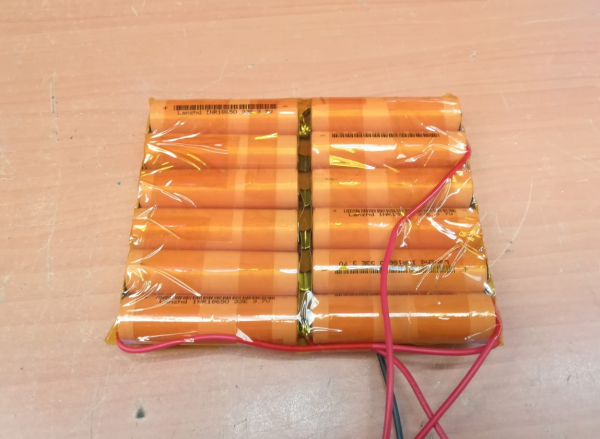

The battery pack is as discussed in the introduction a 3S4P lithium homemade pack.

It gives 12.6V fully charged and 12000mah of capacity.

The pack is soldered the clean way with a DIY point soldering unit I've made for making some powerfull eBikes.

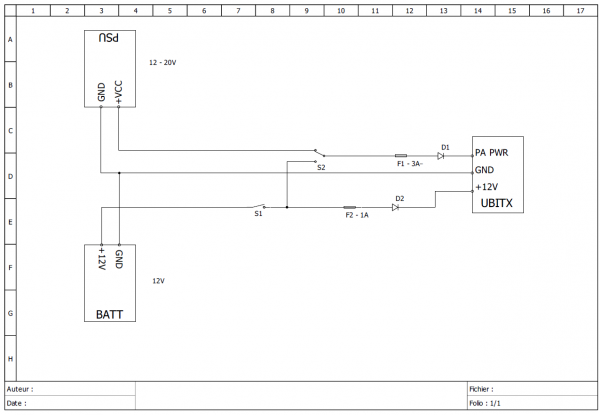

The rig will have also an external port to connect a power supply to supply only the PA PWR for the finals.

As discussed here, I'll give it a go to test suppliyng more voltage for the finals and see if there are improvements.

It seems that the max voltage you can supply without damaging the board is about 20V. So I plan to test it maybe at 19-20V and see.

D1 and D2 are Schotky diodes rated 8A.
